Hand Tools

Crimping Tool Individual Dies

All Dies
  • Single purchase dies available for your crimping application.
  • Dies are designed for quick change crimping tool handles

View Brochure

WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

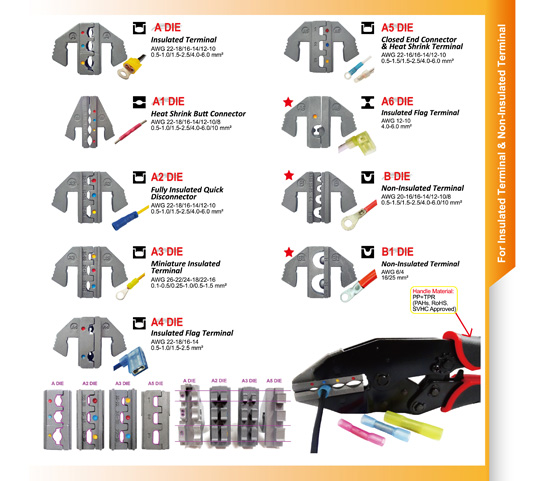

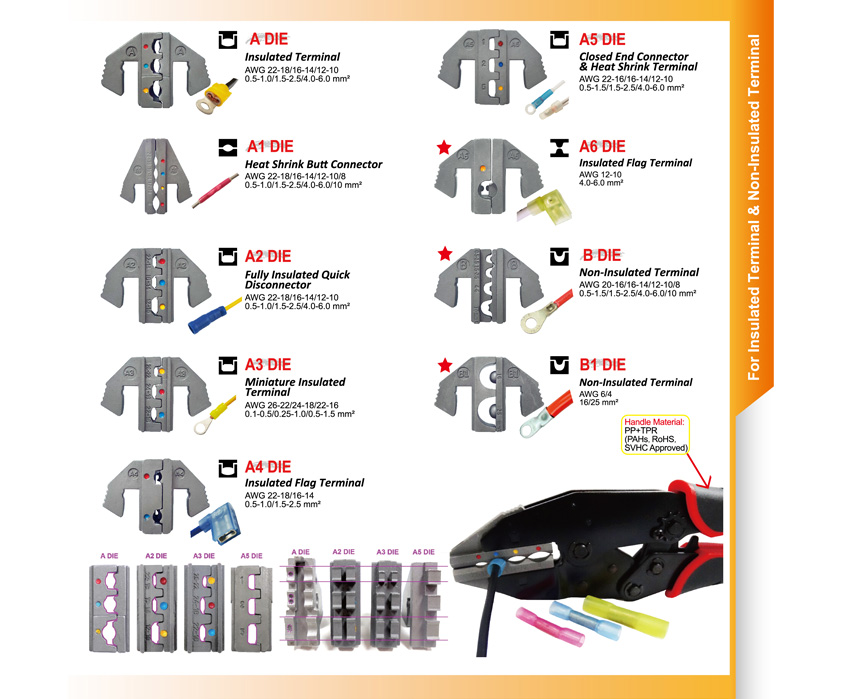

Insulated Contacts

Part Number Die Name Application Size
HT-2110-A A Insulated AWG 22-18/16-14/12-10
HT-2110-A1 A1 Heat Shrink Butt Connectors AWG 22-18/16-14/12-10/8
HT-2110-A2 A2 Fully Insulated Quick Disconnect AWG 22-18/16-14/12-10
HT-2110-A3 A3 Miniature Insulated AWG 26-22/24-18/22-16
HT-2110-A4 A4 Insulated Flag AWG 22-18/16-14
HT-2110-A5 A5 Closed End / Heat Shrink Connt. AWG 22-16/16-14/12-10
HT-2110-A6 A6 Nylon Insulated Flag AWG 12-10

Non-Insulated Contacts

Part Number Die Name Application Size
HT-2110-B B Non-Insulated AWG 20-18/16-14/12-10/8
HT-2110-B1 B1 Non-Insulated AWG 6/4

Yazaki Contacts

Part Number Die Name Application Size
HT-2150-Y1 Y1 YES/YESC 1.5 Unsealed AWG 22/20/18/16
HT-2150-Y2 Y2 YES/YESC Kaizen 2.8 Sealed AWG 22-20/18-16/14
HT-2150-Y3 Y3 YES/YESC 2.8 Unsealed AWG 16/14
HT-2150-Y4 Y4 YES/YESC 1.5 Unsealed AWG 22/20
HT-2150-Y6 Y6 Yazaki/Sumitomo 2.3II/ TS90II AWG 22/20/20-18/16
HT-2150-Y9 Y9 Sumitomo 8100-0461/8100-3655 Yazaki 7116-1471 AWG 18-20/16/18/20

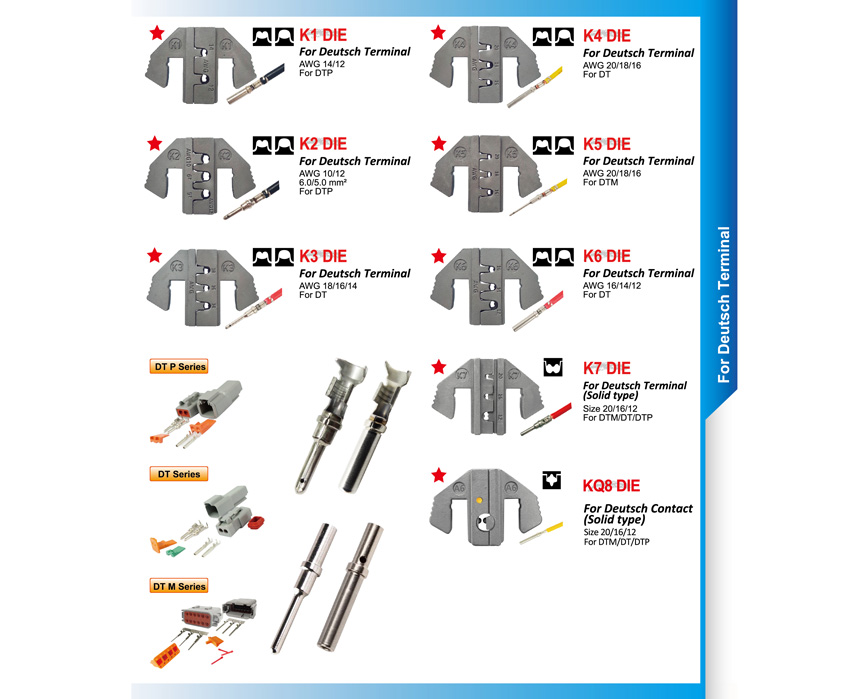

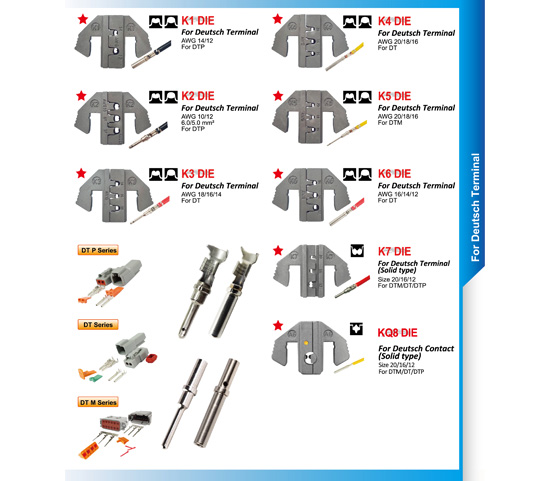

TE Deutsch Contacts

Part Number Die Name Application Size
HT-2125-K1 K1 DTP(Stamped/Formed) AWG 14/12
HT-2125-K2 K2 DTP(Stamped/Formed) AWG 10/12
HT-2125-K3 K3 DT(Stamped/Formed) AWG 18/16/14
HT-2125-K4 K4 DT(Stamped/Formed) AWG 20/18/16
HT-2125-K5 K5 DTM(Stamped/Formed) AWG 20/18/16
HT-2125-K6 K6 DT(Stamped/Formed) AWG 16/14/12
HT-2125-K7 K7 Solid Type DTM/DT/DTP Size 20/16/12
HT-2125-KQ8 KQ8 4 Indent DTP/DT/DTM AWG 20/16/12

TE Timer Series

Part Number Die Name Application Size
HT-2150-L L JPT AWG 24-13
HT-2150-L1 L1 JCP / MCP Flat AWG 20-14
HT-2150-L2 L2 JT / ST AWG 20-13
HT-2150-L5 L5 MCP 2.8, JPT and Sensor DIN 0.2-0.35/0.5-1.0/1.5/2.5 mm2
HT-2150-L6 L6 MCP 2.8, JPT and Sensor DIN 0.2-0.35/0.5-1.0/1.5/2.5 mm2
HT-2150-L7 L7 JPT DIN 0.5-1.0/0.5-1.0/1.5-2.5/1.5-2.5 mm2
HT-2150-L8 L8 TE CI 2, JT, ST / JPT DIN 0.5-1.0/0.5-1.0/1.25-2.5 mm2
HT-2150-L9 L9 FASTIN-FASTON 2.8, ST, SPT, JPT 2.8, JT 2.8, Positive Lock 6.3 DIN 0.2-0.5/0.2-0.5/0.2-0.5/0.2-0.5/ 0.2-0.5 mm2
HT-2150-L10 L10 SPT Flat/Receptacle / MCP AWG 24-20/20-17/15-13/11

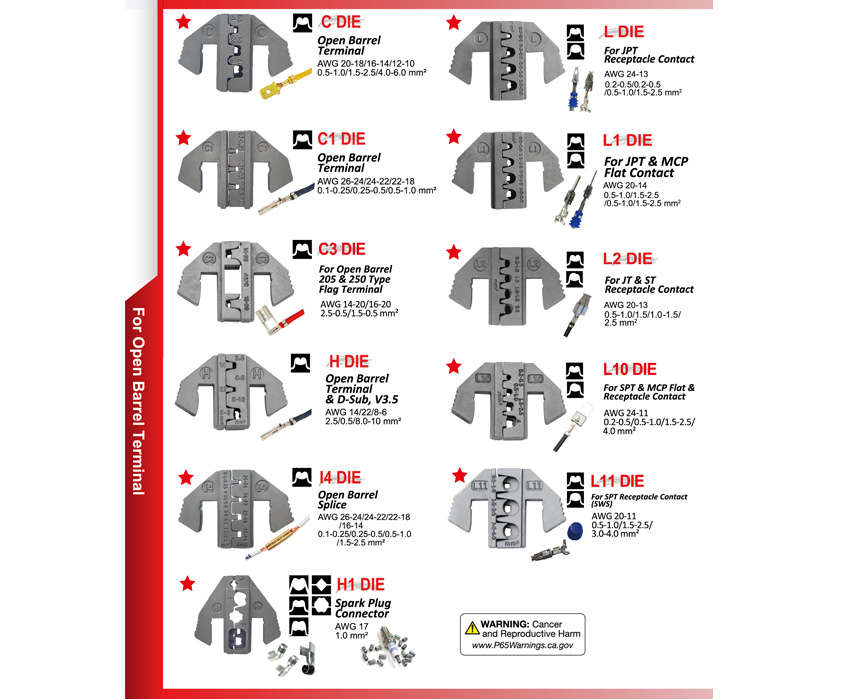

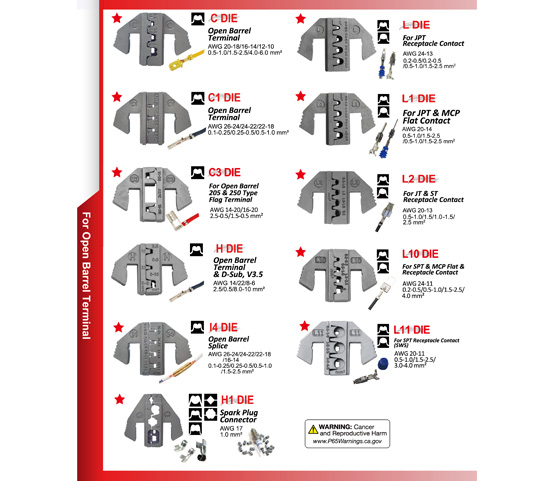

Open Barrel Contacts

Part Number Die Name Application Size
HT-2131-C C Open Barrel AWG 20-18/16-14/12-10
HT-2131-C1 C1 Open Barrel AWG 26-24/24-22/22-18
HT-2131-H H Open Barrel Terminal / D-Sub, V.35 AWG 14/22/8-6
HT-2130-H1 H1 Spark Plug Connector AWG 17
HT-2130-I4 I4 Open Barrel Splice AWG 26-24/24-22/22-18/16-14

Cord End Contacts

Part Number Die Name Application Size
HT-2131-D D Cord End AWG 20/18/17/16/14/12
HT-2131-F F Cord End AWG 10/8/6
HT-2131-F1 F1 Cord End AWG 4/2

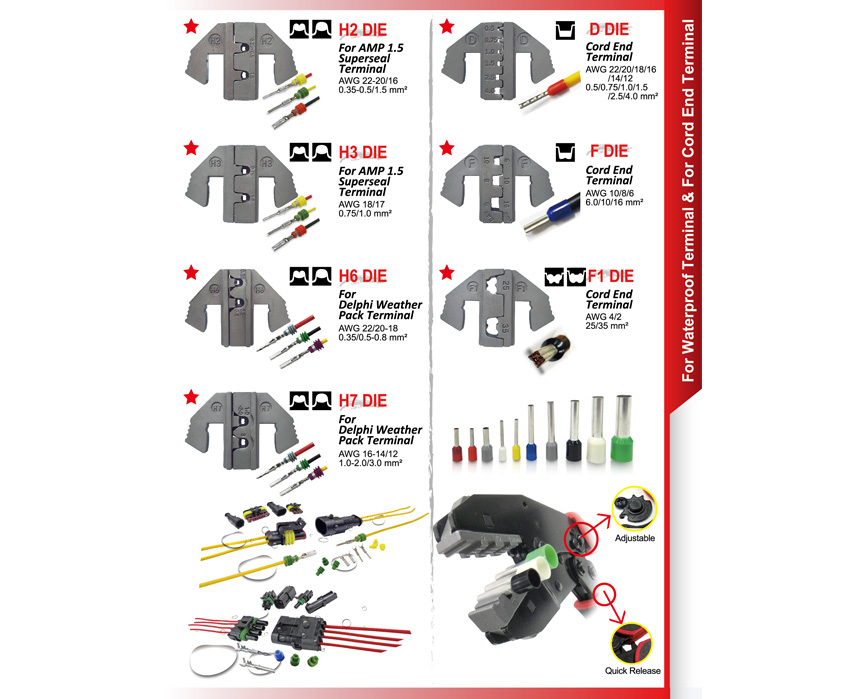

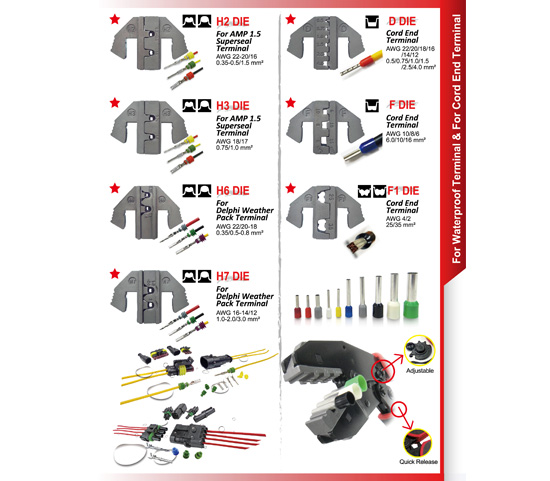

Waterproof Contacts

Part Number Die Name Application Size
HT-2120-H2 H2 AMP Superseal 1.5 AWG 22-20/16
HT-2120-H3 H3 AMP Superseal 1.5 AWG 18/17
HT-2115-H6 H6 Delphi Weather Pack AWG 22/20-18
HT-2115-H7 H7 Delphi Weather Pack AWG 16-14/12

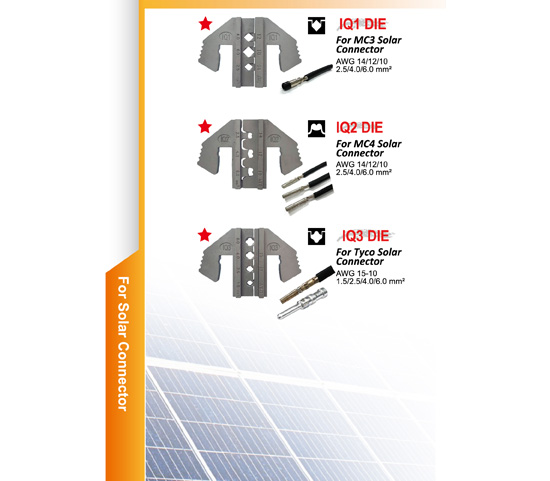

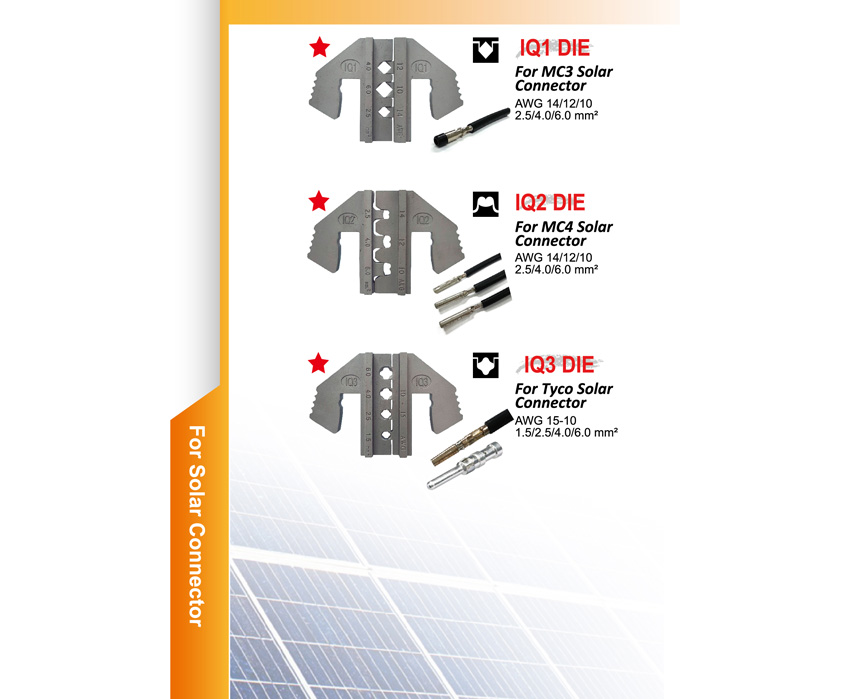

Solar Connector

Part Number Die Name Application Size
HT-2130-I2 I2 MC4 Solar AWG 14/12/10
HT-2130-IQ1 IQ1 MC3 Solar AWG 12/10/14
HT-2130-IQ2 IQ2 MC4 Solar AWG 14/12/10
HT-2130-IQ3 IQ3 Tyco Solar AWG 15-10

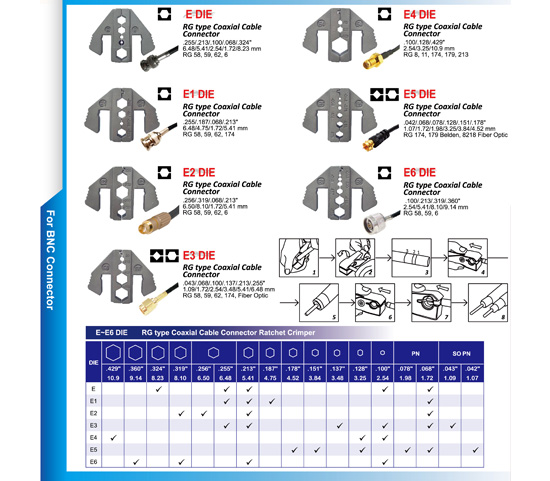

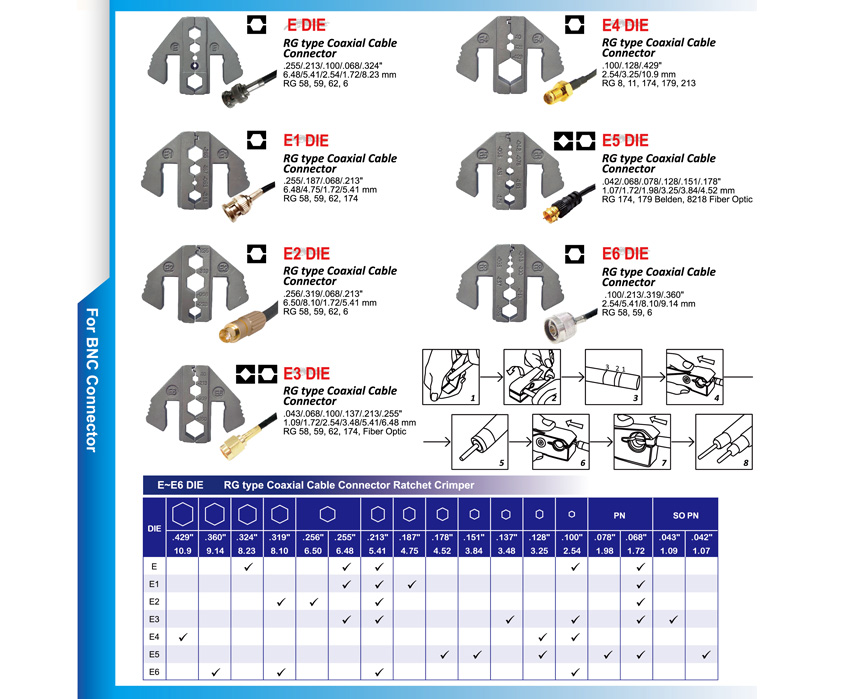

BNC Connector

Part Number Die Name Application Size
HT-2130-E E RG Type Coaxial Cable .255/.213/.100/.068/.324"
HT-2130-E1 E1 RG Type Coaxial Cable .255/.187/.068/.213"
HT-2130-E2 E2 RG Type Coaxial Cable .256/.319/.068/.213"
HT-2130-E3 E3 RG Type Coaxial Cable .043/.068/.100/.137/.213/.255"
HT-2130-E4 E4 RG Type Coaxial Cable .100/.128/.429"
HT-2130-E5 E5 RG Type Coaxial Cable .042/.068/.078/.128/.151/.178"
HT-2130-E6 E6 RG Type Coaxial Cable .100/.213/.319/.360"
