Hydraulic Tools & Equipment

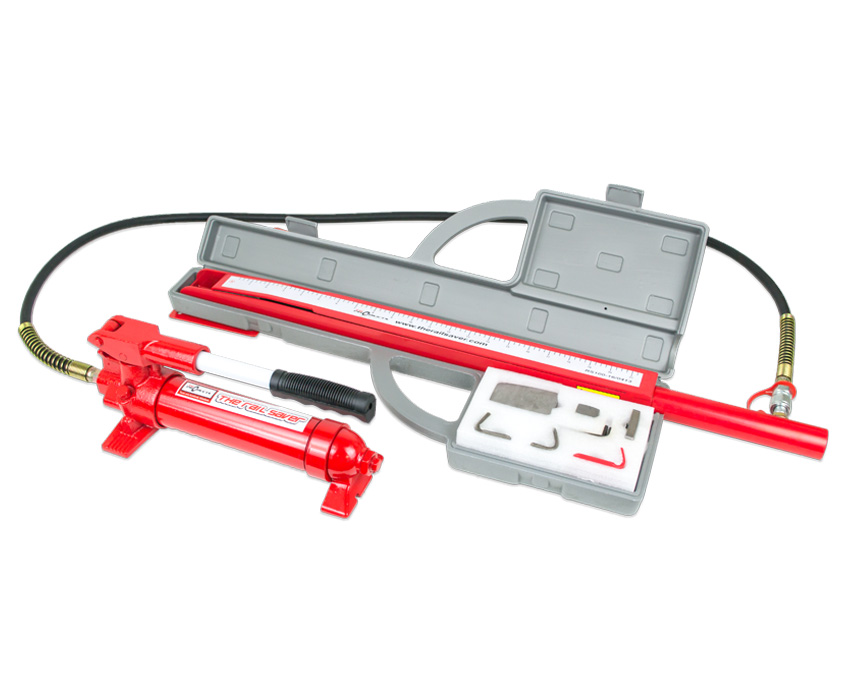

The Rail Saver, Accessory Kit, 4 Ton Pump, Ram, Case and Wall Bracket

Model RS-120

Designed to help collision shops repair more cars better, faster. More cars, quicker cycle time, better repairs.

  • Repairs side members and frame rails fast from the inside out
  • NO heating necessary
  • Don’t spend time drilling and cutting access holes only to weld them back together
  • 4 tons surface pressure with 1.2” expansion
  • Repairs side members and frame rails fast from the inside out
  • NO heating necessary
  • Don’t spend time drilling and cutting access holes only to weld them back together
  • 4 tons surface pressure with 1.2” expansion
  • Convex dollies to avoid protrusions
  • “Lean” storage system with a case and wall mount bracket
  • Pays for itself within a couple of uses especially if you save a vehicle from total loss

Parts List

WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Get ready for an easy and cost-saving solution for your frame rail repairs with The Rail Saver. Designed by an auto body technician to help fellow auto body technicians, the rail saver repairs frame rails quickly, easily and effectively. It can convert a 4-ton ram into a powerful box rail repair tool and helps you save the frame rails. It works well on steel, high strength steel, and aluminum body components. With this tool, there is no need to heat the frame rails or to drill and cut access holes for repair. The rail saver makes a repair job so easy that your repair techs can move from one repair to another faster than ever.

This tool repairs rails up to a depth of 27". To use it, just place the convex push pad in the desired position. If needed, you may use shims to avoid obstructions. Make sure the "Rail Body" is flat against the frame rail side opposite the damage, and calculate the depth of damage using the target at the end of the tape measure on the Rail Saver. Now mark it with a dry erase marker and place the Rail Saver into the damaged frame rail up to the depth you marked up. Expand as needed using the hand pump, and hammer out the high areas if required. Now just open the valve to release the Rail Saver and just like that, your repair is complete.

The tool comes with a bracket and can be wall mounted to save space. The included accessory kit provides better access to repair areas and a superb finishing.

Threaded convex finishing pad : 3" x 2" x 3/8"
Threaded convex pad 1 : 7/8" x 2" x 3/8"
Threaded convex pad 2 : 3/4" x 1" x 3/4"
Screws : 0.6mm – 1 x 8mm

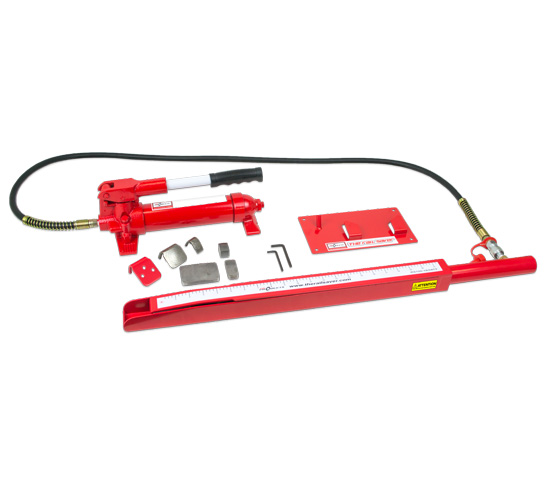

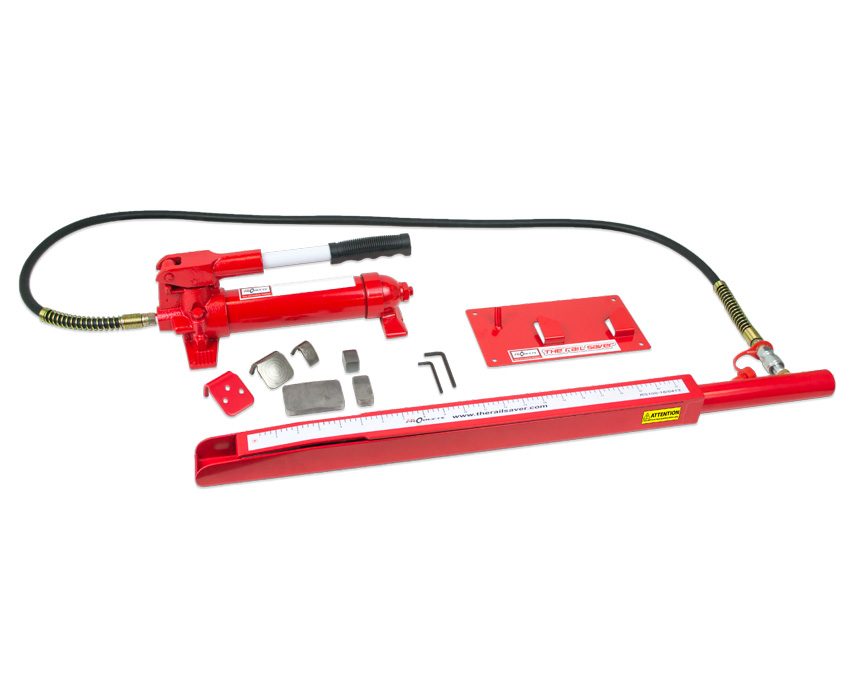

  • The Rail Saver
  • 4 Ton Pump
  • 6 ft. Hydraulic Hose
  • Accessory Kit
  • 4 Ton Ram
  • Case
  • Wall Bracket
  • Instructions
